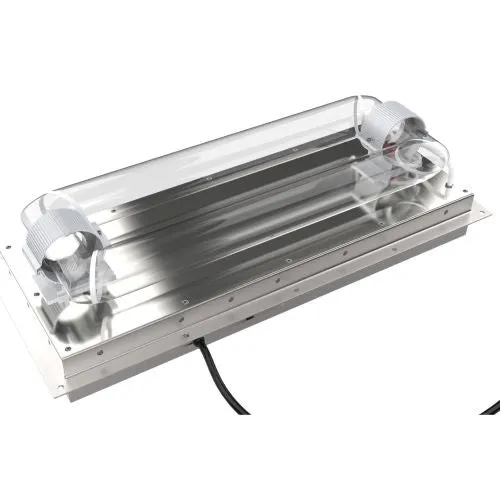

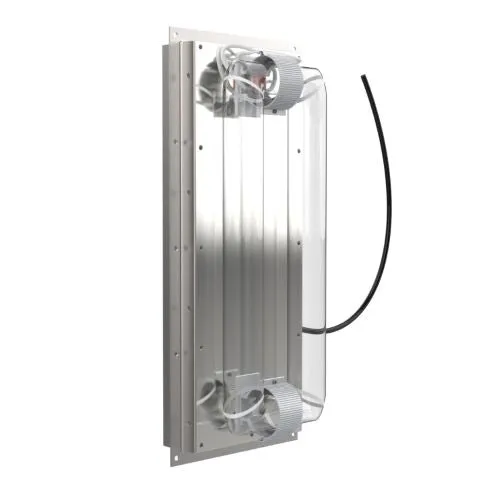

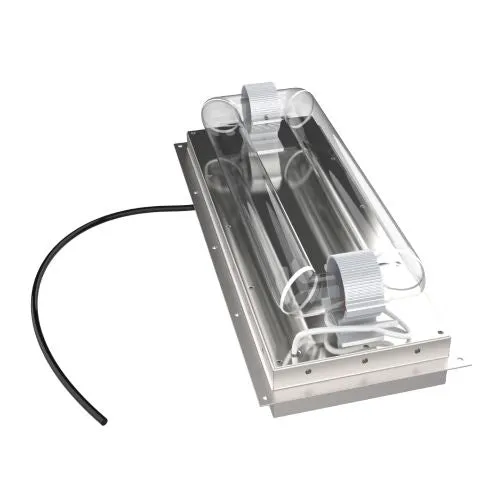

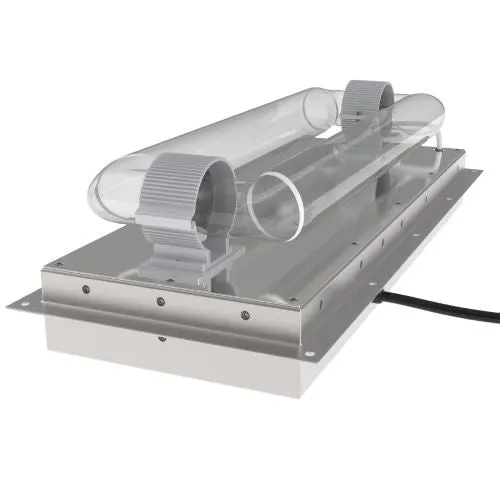

Blade Air UV-C Induct 300W
Designed to fit seamlessly within a new or existing HVAC system to sanitize the air as it flows through any size facilities. The 300 Watt UV bulb equipped on the Induct will turn on when airflow is detected. The Blade Air UV-C Induct 300W produces no ozone, and bulbs have a 43,800 hour lifespan.
Scientifically proven and third-party tested to deactivate and destroy 99.9% of airborne viruses, bacteria, and mold. Offers complete facility protection based on new or existing HVAC designs vs. stand-alone units that are designed to protect specific spaces. Achieved UL 2998 certification and are safe for operation in environments that are sensitive to the production of harmful ozone. Featuring a five-year lamp life of continuous use with absolutely zero maintenance, minimizing ongoing facilities costs.
Science of UV-C
Not all UV-C is created equal
Air Sniper is designed to effectively treat all air moving through any HVAC system.
3 Key Components of UV-C Efficacy
Scientifically proven and third-party tested to capture harmful particles, airborne viruses, and bacteria.
1. Dwell Time
Dwell time is the period a contaminant spends within the proper UVC intensity level. Our equipment is designed to provide the dwell time required to kill pathogens
2. Proximity
To ensure effective levels of irradiation, our equipment ensures pathogens are always within close proximity to the UVC bulbs as they pass through the unit into the facility.
3. Intensity
Effectively killing airborne pathogens requires high volumes of UV intensity, which comes from multiple bulbs that create a wall of UVC to irradiate contaminants.
Features
- ROBUST INDUSTRIAL DESIGN: Units can be stacked to address mechanical systems of any size
- REFLECTIVE PANELLING: Highly reflective paneling is used throughout the innerside of the unit to further amplify UV intensity.
- AIRFLOW SENSE DETECTION: The 300 Watt UV bulb equipped on the Induct will turn on when airflow is detected.
- INTENSE 300W UV-C BULB: Industry-leading True HEPA filter removing 99.97% at 0.3 microns in size.
- POWER SOURCE: Pulling pre-filtered air from below and pushing through HEPA filter.
TECHNICAL SPECIFICATIONS
Bulb Type | 300 Watts |
Running Lifetime |
43,800 Hours |
Estimated Life Span of Bulb |
10 Years but can vary |
Warranty Bulb |
3 Years |
Labor | 1 Year |
Smart Technology | BAS Integration (Enable/Disable, Alert, Status) |
Ozone | Ozone Free |
High Volume | CDC & ASHRAE recommended |
Power Requirements | Single Phase, 110V AC 50/60 Hz |
Energy Consumption | 3.5 Amp Max (420 Watt) @110V AC |
Weight | 15 lbs |

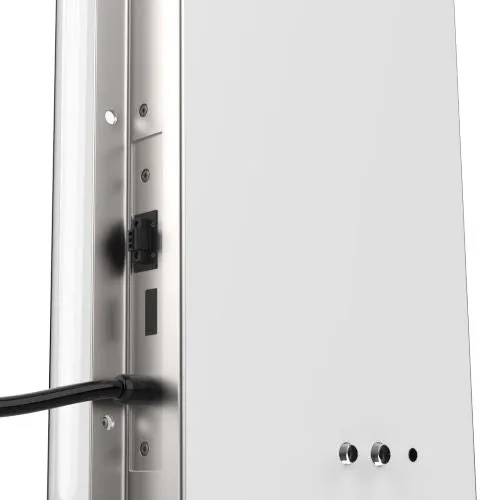

Status Indicator | Status, bulb life, alarm indicators |
Housing Material | Aluminum |
Electrical Safety Certification | cETLus Certified UL and CSA Standards |
Dimensions | 25"(H) x 10"(W) x 5.36"(D) |
Power Control | On/Off controller by fan power on/off cycle |
Operating Temp Range | -25C/ 100C |
Recommended Airflow | 500-1500 CFM |
*Can be upgraded to 208V AC 50/60 Hz for extra charge*
WHAT’S IN THE BOX
- 1 - Blade Air UV-C Induct 300W
- 1 - Owner’s Manual
